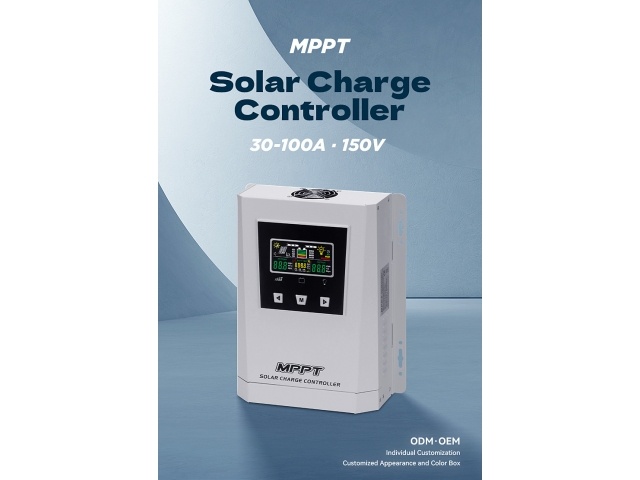

Maximum PV Open Circuit Voltage 150V
System Voltage: 12V/24V/36V/48V Auto
Rated Charge Current: 80A
Rated Discharge Current: 40A
Own Consumption = 35mA(48V)
MPPT Highest Accuracy: 99%
Maximum Charging Efffciency 97%
Charging Control Mode: Multi-stage (MPPT,Absorption, Float,Equalization,CV)
Float Charge: 13.8V/27.6V/41.4V/55.2V
Absorption Charge: 14.4V/28.8V/43.2V/57.6V
Equalization Charge: 14.6V/29.2V/43.8V/58.4V
Load Disconnection(LVD) 10.8V/21.6V/32.4V/43.2V
Load Reconnection(LVR) 12.6V/25.2V/37.8V/50.4V
Load Control Mode Normal, Light Control, Light and Timing Control, Timing Control, Reverse Light Control
Temperature Compensation -24mV/ºC for 12V System
Batterr Type GEL, SLD, FLD and USER(default), Lithium Batteries Customization
| Código | MPK3-80 |
| Garantía | 180 DIAS |
